Pipar Flake

Nine keys, a rotary encoder, and a tiny OLED. The remote for everything else.

Eight Choc switches plus an encoder for volume and layer-switching, an OLED to show what it's currently doing, and a printed case that fits in a pocket. Designed as the smallest useful keypad — currently the remote control for a Kodi machine.

Status — In production · v1

PCB & firmware on GitHub↗

§ Specification

Technical · revision current

Layout: 3 × 3 + encoder (9 + 1)
MCU: pro-micro-pinout nRF52840
Display: Tiny OLED, status + layer
Switches: Kailh Choc low-profile (hotswap)
Encoder: Rotary + push (volume / layers)
Firmware: ZMK

§ Plates

1 additional figures

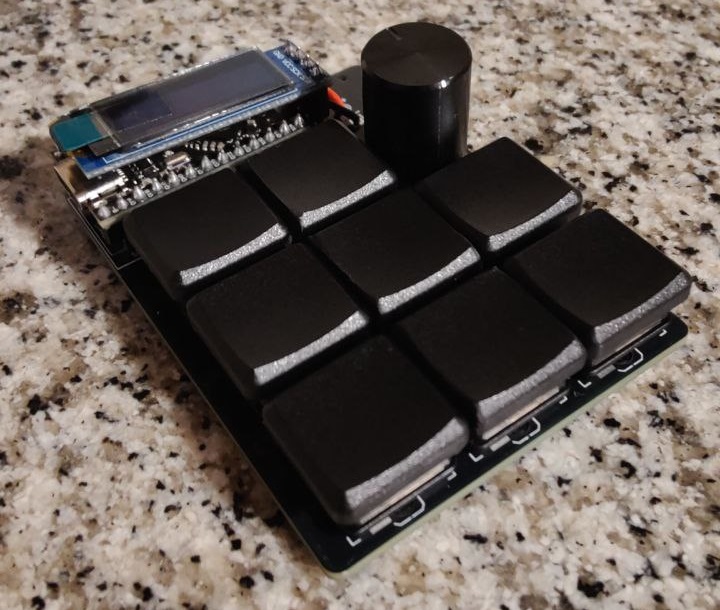

Pipar Flake from the side — Fig. 003.1photo
